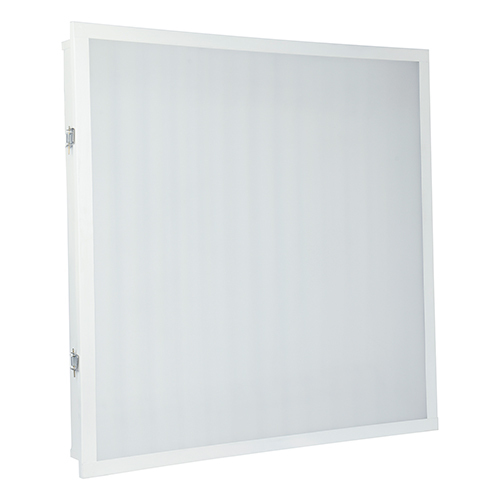

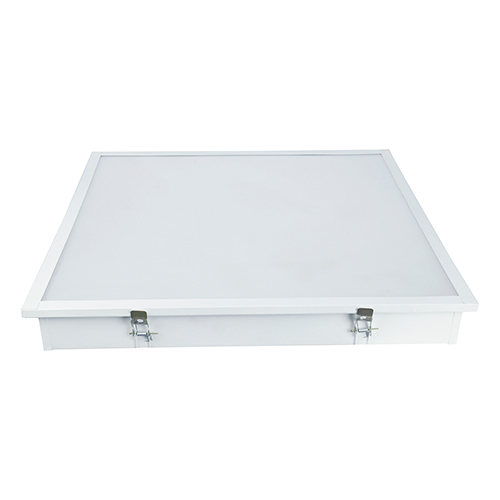

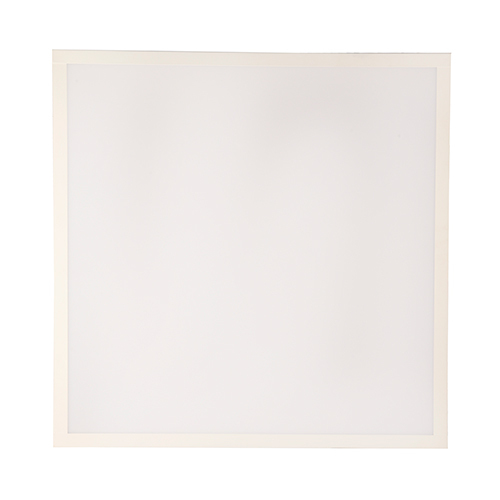

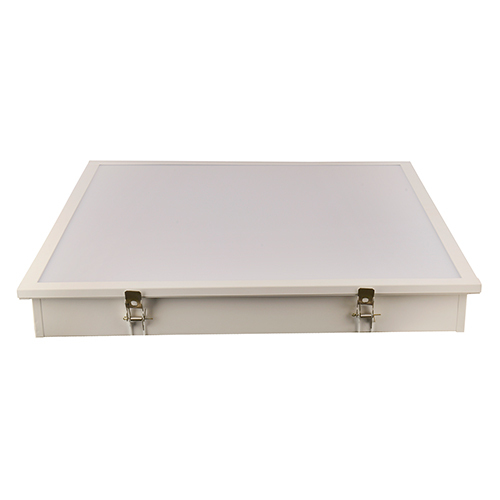

B2X2-R-001 Troffer Light

Get a Price/Quote

MOQ : 100 Pieces

B2X2-R-001 Troffer Light Specification

Size
Standard

Product Type
Troffer Light

Material
Metal & Glass

Voltage
110-215 Volt (v)

Power Supply
Electric

Usage
Commercial

Efficiency
High

Color
White

Warranty
1 year

B2X2-R-001 Troffer Light Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash Advance (CA)

Supply Ability
5000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About B2X2-R-001 Troffer Light

The B2X2-R-001 is a series of troffer lights ideal for soft general illumination. Manufactured in a square shape, the construction of the luminaire makes it easy to install in grid as well as gypsum ceilings. The housing is powder coated and the diffusers come in two variations - opal or microprismatic, ensuring these backlit luminaires effortlessly and effectively illuminate spaces with minimum glare. Having ingress protection of IP 40, designed to operate for long hours, and seamless compatitability with most lighting control systems for energy management, make this luminaire perfect for use in institutional, commercial and medical settings.

Specification

Environment	Indoor
Installation	Recess Mounted / Grid Cieling Mounted
Construction	Powder Coated CRC Steel
Construction Protection	Powder Coated
Class of Construction	Class - II
Optics	Opal Diffuser / Prismatic Diffuser
Beam Angle	120 Degree Spread Beam
Control Gear	Class II, THD<10%, PF>0.95
Control Gear Protections	Over Voltage upto 300 Volts, 440 Volt Protection upto 2 hours, Inbuilt 5KV Surge Protection, Under Voltage Protection
Optional Protections	Additional SPD rated at 10 kVA
Operating Temperature	-5 Degree to 50 Degree Celcius
Ingress Protection	IP40
Operating Voltage	220 Volt AC at 50/60 Hz

Model	Dimension (L x W x H in mm)"	Power	CCT	Surge	Beam Angle
B2X2-R-001-36	595 X 595 X 30	36 Watts	WW/NW/CW	5kV	120 deg
B2X2-R-001-48	595 X 595 X 30	48 Watts	WW/NW/CW	5kV	120 deg
