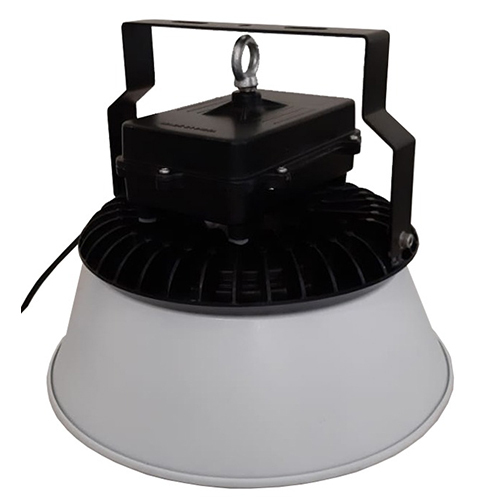

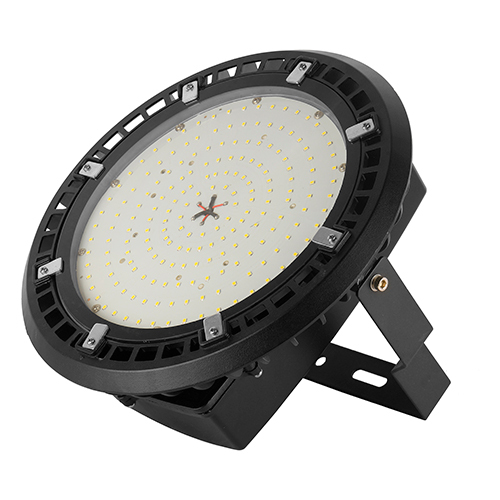

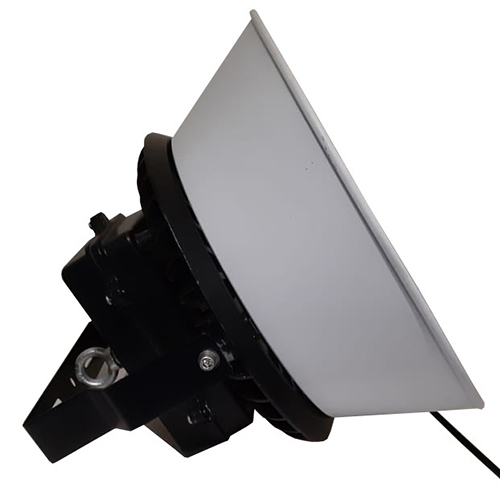

BBL-001 Bay Light

Get a Price/Quote

MOQ : 100 Pieces

BBL-001 Bay Light Specification

Size
Standard

Product Type
Bay Light

Material
Metal & Glass

Voltage
110-215 Volt (v)

Power Supply
Electric

Usage
Commercial

Efficiency
High

Color
Black

Warranty
1 year

BBL-001 Bay Light Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash Advance (CA)

Supply Ability
5000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About BBL-001 Bay Light

The BBL-001 is a series of rugged, all weather, suspended bay lights. The housing is made of pressure die cast aluminium alloy and is specifically designed to efficienty dissipate heat. Having ingress protection rated at IP66, with thermally potted outdoor grade control gear in a separate encloser, this luminaire is designed to last even when used for long, continiuous, operating hours.

Specification

Environment	Indoor - meant for moderately harsh environments
Installation	Installation with integrated Mounting Arm and I-Bolt
Construction	Die Cast Aluminium Alloy, with Pure Polyester Powder Coating
Class of Construction	Class - I
Primary Optic	Tempered Glass. Optional Aluminium Dome.
Beam Angle	120 Degree
Control Gear	Thermally Potted Outdoor Grade Control Gear - Class I, THD<10%, PF>0.95
Electrical Protections	Over Voltage upto 300 Volts, 440 Volt Protection upto 2 hours, Inbuilt 5 KV Surge Protection, Under Voltage Protection
Optional Protections	Additional SPD rated at 10 KV / 20 KV
Operating Temperature	-10 Degree to 50 Degree Celcius

Model	"Dimension (L x W x H in mm)"	Power	CCT	Surge	Beam Angle	Optional Accessory
BBL-001-75	130 X 275	75 Watts	WW/NW/CW	5kV/10kV	120 deg	Dome
BBL-001-90	130 X 275	90 Watts	WW/NW/CW	5kV/10kV	120 deg	Dome
BBL-001-120	130 X 275	120 Watts	WW/NW/CW	5kV/10kV	120 deg	Dome
