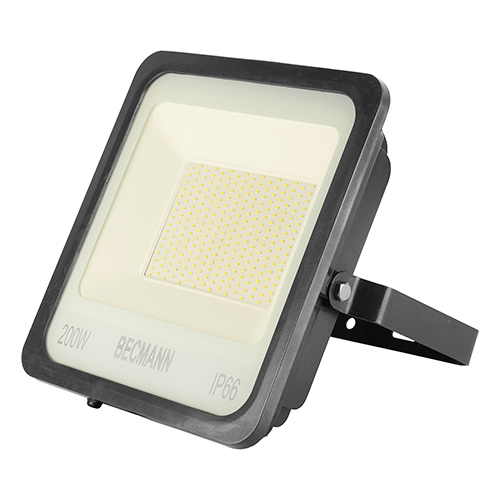

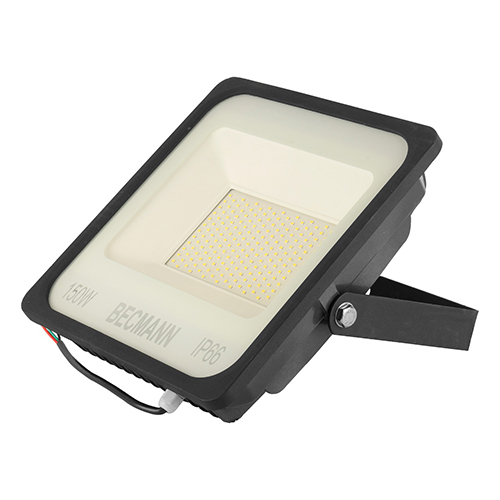

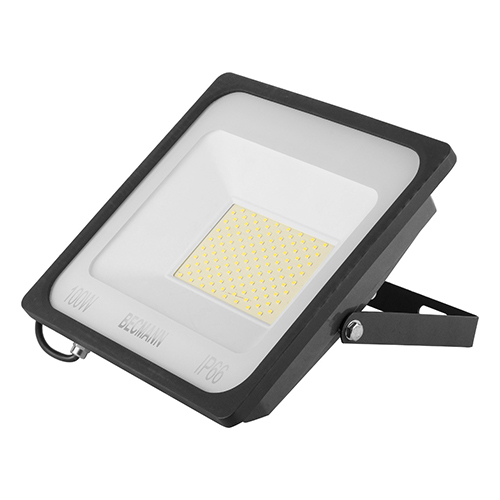

BFL-001 Flood Light

Get a Price/Quote

MOQ : 100 Pieces

BFL-001 Flood Light Specification

Size
Standard

Product Type
Flood Light

Material
Metal & Glass

Power Supply
Electric

Usage
Commercial

Efficiency
High

Color
Black

Warranty
1 year

BFL-001 Flood Light Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash Advance (CA)

Supply Ability
5000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About BFL-001 Flood Light

The BFL-001 is a series of all weather, general purpose, wide beam flood lights. The luminaires are made of a pressure die cast aluminium alloy, which is specifically designed to efficiently dissipate heat. The Luminaire is powder coated to withstand the wear of harsh outdoor conditions. Having ingress protection rated at IP66, with thermally potted outdoor grade control gear, this luminaire is designed to last. A highly efficient fixture, it is offered in 5 sizes with a versatile mounting arm to cater to all needs general area lighting. If the requirement is for a long term hassle free solution for outdoor general area lighting, then look no further.

Specification

Environment	Outdoor
Installation	Surface Mounted using Integrated Mounting Arm
Construction	Die Cast Aluminium Alloy with Aluminium Frame
Construction Protection	Outdoor Grade Powder Coating
Class of Construction	Class - I
Primary Optic	White Polymer Reflector protected by Tempered Glass Visor
Beam Angle	120 Degree Spread Beam
Tilt	Yes
Control Gear	Thermally Potted Outdoor Grade Control Gear - Class I, PF >0.95, THD<10%
Control Gear Protections	Over Voltage upto 300 Volts, 440 Volt Protection upto 2 hours, Inbuilt 5 KV Surge Protection, Under Voltage Protection
Optional Protections	Additional SPD rated at 10 KV / 20 KV
Operating Temperature	-5 Degree to 50 Degree Celcius
Ingress Protection	IP66
Operating Voltage	220 Volt AC at 50/60 Hz

Model	Dimension (L x W x H in mm)	Power	CCT	Surge	Beam Angle
BFL-001-50	225 X 220 X 50	50 Watts	WW/NW/CW	5kV/10kV	120deg
BFL-001-100	270 X 282 X 75	100 Watts	WW/NW/CW	5kV/10kV	120deg
BFL-001-150	305 X 285 X 75	150 Watts	WW/NW/CW	5kV/10kV	120deg
BFL-001-200	338 X 385 X 85	200 Watts	WW/NW/CW	5kV/10kV	120deg
