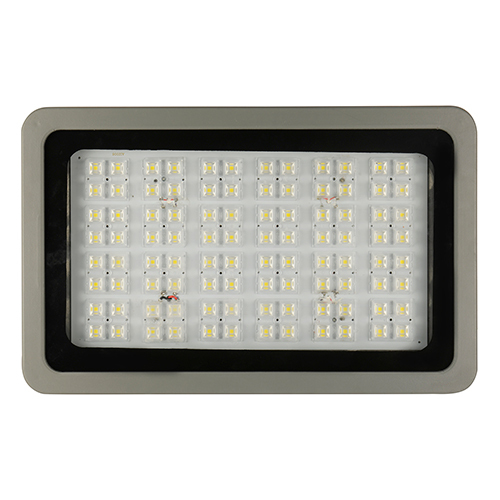

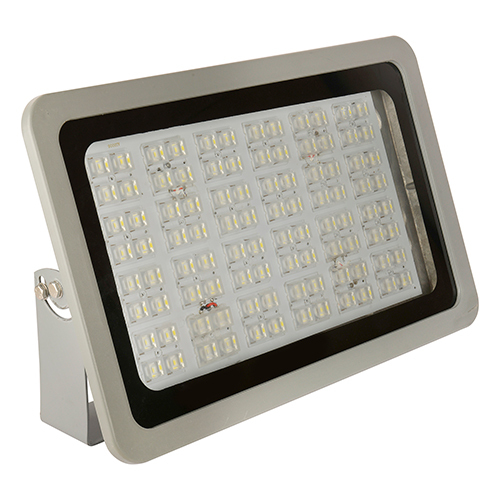

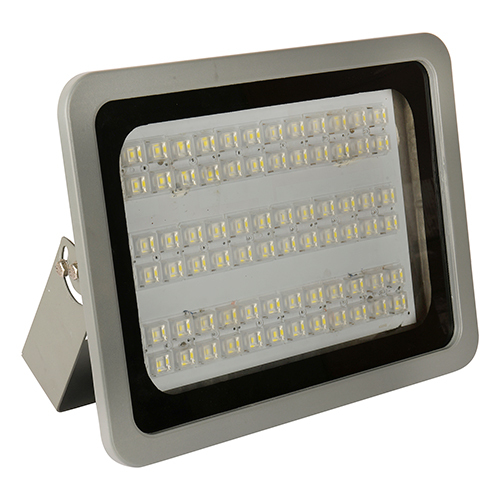

BFL-002 High Mast Light

Get a Price/Quote

MOQ : 100 Pieces

BFL-002 High Mast Light Specification

Size
Standard

Product Type
High Mast Light

Material
Metal & Glass

Voltage
110-215 Volt (v)

Power Supply
Electric

Usage
Commercial

Efficiency
High

Color
White

Warranty
1 year

BFL-002 High Mast Light Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash Advance (CA)

Supply Ability
5000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About BFL-002 High Mast Light

The BFL-002 is a series of all weather, high power luminaires designed for flood and high mast applications. The luminaires are made of a pressure die cast aluminium alloy specifically designed to efficiently dissipate heat. The luminaire is powder coated using pure polyester polymers to withstand the wear of harsh outdoor conditions. Having ingress protection rated at IP67, with thermally potted outdoor grade control gear in its own separate enclosure, this luminaire is designed to last. A highly efficient fixture, it is offered in various power options with a versatile mounting arm to cater to all needs of area lighting. The option of multiple optics makes this fixture suitable for mounting at various heights to illuminaite spaces at various distances.

Specification

Environment	Outdoor
Installation	Surface Mounted using Integrated Mounting Arm
Construction	Die Cast Aluminium Alloy with Aluminium Frame
Construction Protection	Outdoor Grade Pure Polyester Powder Coating
Class of Construction	Class - I
Primary Optic	UV Stabalized PC Lens with various photometric options / Aluminium Plated PC Reflector
Secondary Optic	Tempered Glass Visor
Beam Angle	25/60/90 Degree Beam Angles
Tilt	Yes
Control Gear	Thermally Potted Outdoor Grade Control Gear - Class I, THD<10%, PF>0.95
Control Gear Protections	Over Voltage upto 300 Volts, 440 Volt Protection upto 2 hours, Inbuilt 5 KV Surge Protection, Under Voltage Protection
Optional Protections	Additional SPD rated at 10 KV / 20 KV
Operating Temperature	-5 Degree to 50 Degree Celcius
Ingress Protection	IP67
Operating Voltage	220 Volt AC at 50/60 Hz

Model	Dimension (L x W x H in mm)	Power	CCT	Surge	Beam Angle
BFL-002-150	270 X 220 X 120	150 Watts	WW/NW/CW	5kV/10kV	30/60/90/120 Degree
BFL-002-200	365 X 265 X 125	200 Watts	WW/NW/CW	5kV/10kV	30/60/90/120 Degree
BFL-002-250	388 X 288 X 145	250 Watts	WW/NW/CW	5kV/10kV	30/60/90/120 Degree
BFL-002-300	425 X 325 X 155	300 Watts	WW/NW/CW	5kV/10kV	30/60/90/120 Degree
BFL-002-400	557 X 327 X 165	400 Watts	WW/NW/CW	5kV/10kV	30/60/90/120 Degree
