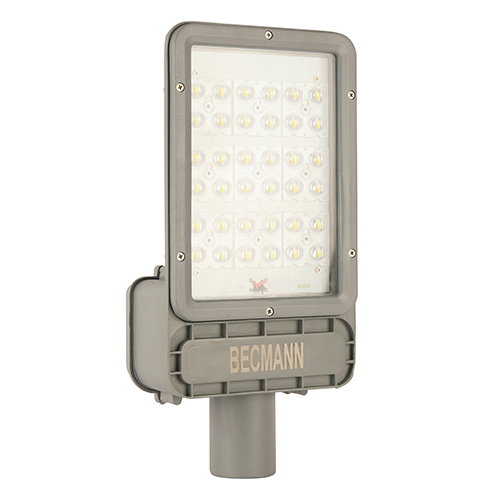

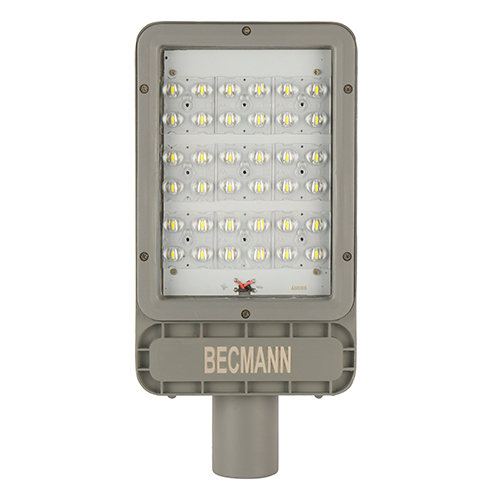

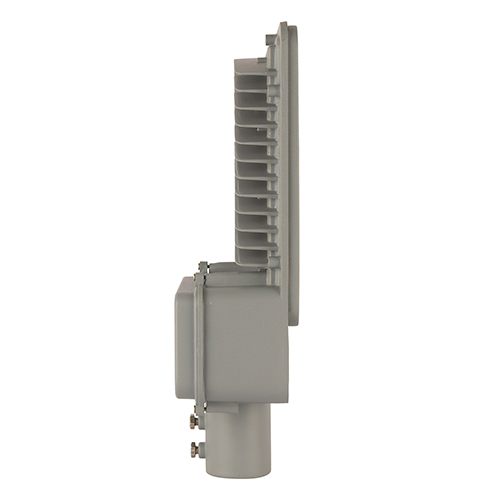

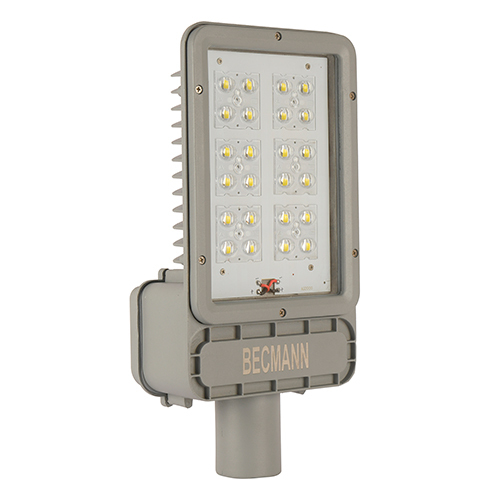

BSL-001 Street Light

Get a Price/Quote

MOQ : 100 Pieces

BSL-001 Street Light Specification

Size
Standard

Product Type
Street Light

Material
Metal & Glass

Power Supply
Electric

Usage
Commercial

Efficiency
High

Color
Black

Warranty
1 year

BSL-001 Street Light Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash Advance (CA)

Supply Ability
5000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About BSL-001 Street Light

The BSL-001 is a series of all weather luminaires primarily used to illuminate streets and roads. The luminaires are made of a pressure die cast aluminium alloy specifically designed to efficienty dissipate heat. The Luminaires are powder coated to withstand the wear of harsh outdoor conditions. Having ingress protection rated at IP66, with thermally potted outdoor grade control gear, this luminaire is designed to last. A highly efficient fixture, it is offered in 8 power options with IESNA Beam Angles.

Specification

Environment	Outdoor
Installation	Pole Mounted
Construction	Die Cast Aluminium Alloy with Aluminium Frame
Construction Protection	Pure Polyester Outdoor Grade Powder Coating
Class of Construction	Class - I
Primary Optic	UV Stabalized PC Lens for IESNA Beam Angles Only, for 120 Degrees, Tempered Glass Visor Only
Secondary Optic	Tempered Glass Visor, N/A for 120 Degrees
Beam Angle	T2 Batwing as per IESNA / 120 Degrees
Tilt	Not integrated with Luminaire, optional tilting accessory available on request
Control Gear	Thermally Potted Outdoor Grade Control Gear - Class I, THD<10%, PF>0.95
Control Gear Protections	Over Voltage upto 300 Volts, 440 Volt Protection upto 2 hours, Inbuilt 5 KV Surge Protection, Under Voltage Protection
Optional Protections	Additional SPD rated at 10 KV / 20 KV
Operating Temperature	-5 Degree to 50 Degree Celcius
Ingress Protection	IP65
Operating Voltage	220 Volt AC at 50/60 Hz

Model	Dimension (L x W x H in mm)	Pipe Dia in mm	Power	CCT	Surge	Beam Angle
BSL-001-45	372 X 148 X 67	49	45 Watts	WW/NW/CW	5kV/10kV	T2/120 deg
BSL-001-60	390 X 185 X 85	54	60 Watts	WW/NW/CW	5kV/10kV	T2/120 deg
BSL-001-72	390 X 185 X 85	54	72 Watts	WW/NW/CW	5kV/10kV	T2/120 deg
BSL-001-90	430 X 225 X 85	54	90 Watts	WW/NW/CW	5kV/10kV	T2/120 deg
BSL-001-120	465 X 235 X 85	59	120 Watts	WW/NW/CW	5kV/10kV	T2/120 deg
BSL-001-150	515 X 260 X 85	54	150 Watts	WW/NW/CW	5kV/10kV	T2/120 deg
BSL-001-200	515 X 260 X 85	54	200 Watts	WW/NW/CW	5kV/10kV	T2/120 deg
